RICO Mk2 LRF 640×512 3X 50mm Thermal Weapon Sight

Device Technology: Thermal Imaging
Objective Focal Length: 50mm
Sensor Resolution: 640×512
Sensor Pixel Size: 12μm
Detection Range: 2400 Yards
Sensor Frame Rate: 60hz
Optical Magnification: 3X
Digital Magnification: 4X, stepped
Objective Diameter: 50mm
Objective F#: 1.0
Onboard Recording: Yes

Data Sheet

$5,499.00

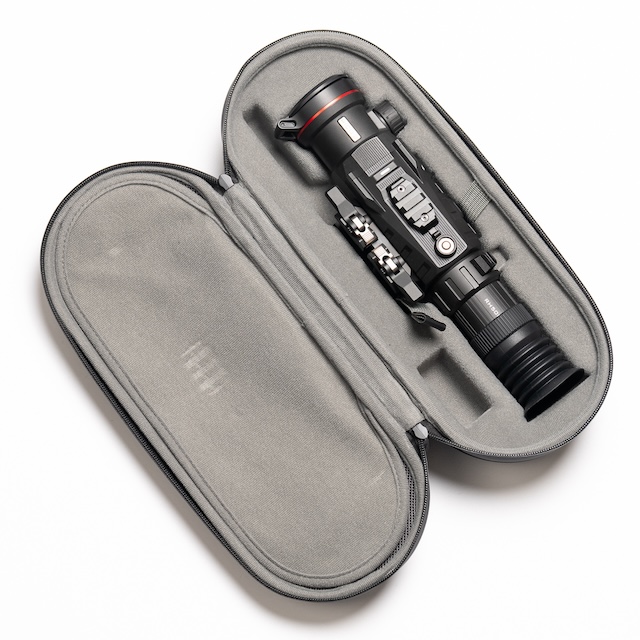

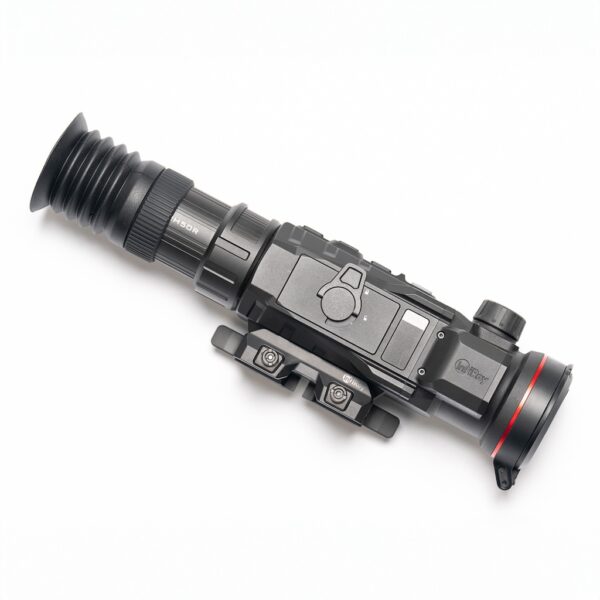

RICO Mk2 LRF 640×512 3X 50mm Thermal Weapon Sight

SKU N/A Categories ,

Built upon the original RICO Mk1 series, the RICO Mk2 LRF was designed with an integrated 1,200-yard capable rangefinder, a 60 Hz refresh rate, and increased sensitivity to an impressive ≤20 mK. The RICO Mk2 features a high-performance 12 µm Micro II core, a 1750-yard detection range, and an ultra-high-contrast 2560×2560 AMOLED HD display for an unparalleled viewing experience. The RICO Mk2 takes its image processing one step further with Advanced Image Correction and Automatic Image Optimization courtesy of its MATRIX III processor.

An intuitive and easy-to-use interface combines with a picture-in-picture function, 5+ hour run-time, magnesium housing, 1000 G/s2 shock-resistance, and 32 GB of internal memory. The RICO Mk2 also unlocks advanced features such as a rotating zoom lever, magnetic charging port, and recoil activated video.

Optics

Objective Focal Length

50mm

Detection Range

2400 Yards

Optical Magnification

3X

Digital Magnification

4X, stepped

Objective Lens Material

Germanium

Horizontal Angular Field of View

8.8°

Vertical Angular Field of View

6.6°

Objective Diameter

50mm

Objective F#

1.0

Eye Relief

60mm

Focusing Mechanism

Manual Focus

Diopter Range

-3 – +3

Display Type

AMOLED

Display Resolution

2560×2560

Features & Performance

Reticle

8 (7 Static, 1 DIY)

Color Palettes

Black Red, Black Green, White Red, White Green, Black White, White Black, Crimson, Viridian

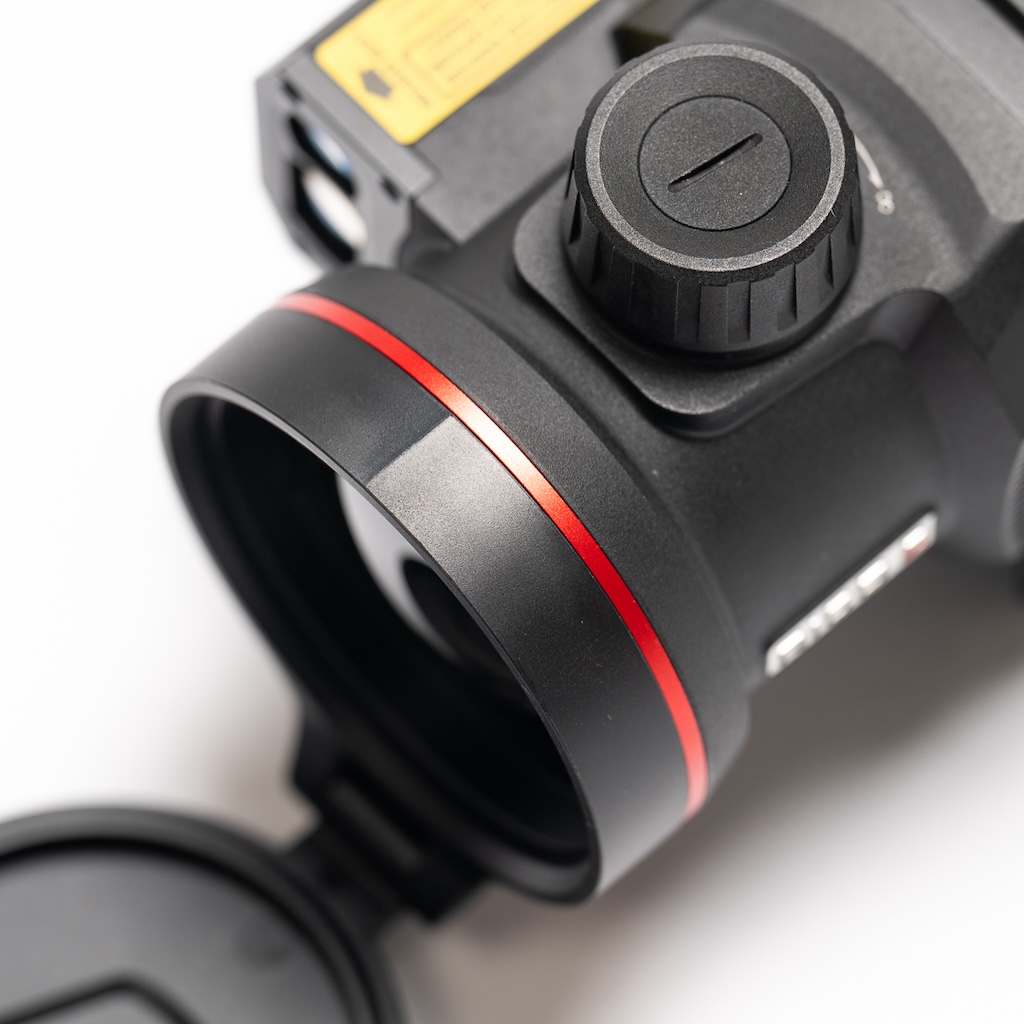

Rangefinder

Integrated 1200 yd LRF

Picture-in-Picture

Yes

One-Shot Zero

Yes

Stand-by Mode

Yes

User-Updatable Firmware

Yes

Mobile App

Yes

Wifi

Yes

Image Capture

Yes

Connector Type

USB-C

Connector Output

Power/Data

Onboard Recording

Yes

Storage Capacity

32GB

Power Source

USB-C External, IBP-5 Li-ion Battery Pack

Run Time

5+

External Power Source

USB-C

Startup Time

<10 Seconds, Instant from Standby

Warranty

5 Years

Country of Manufacture

China

Environmental Specifications

Operating Temperature Range

-4°F~122°F

Ingress Protection

IP67

Recoil Rating

1000 g/s² (300 Win./7mm Mag)

Physical

Length

9.50

Width

3.00

Height

3.75

Weight

36.63 Oz.

Housing Material

Magnesium Alloy

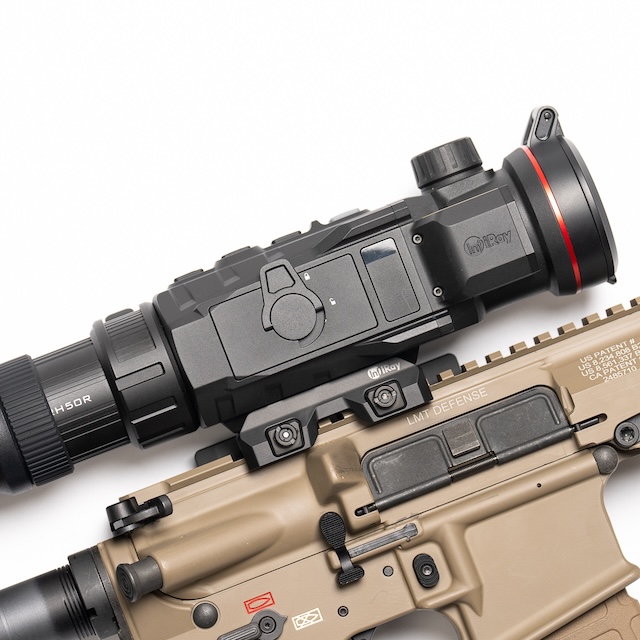

Mounting Interface

Picatinny MIL-STD 1913 Rail

Sensor Specifications

Sensor Type

InfiRay MICRO II

Device Technology

Thermal Imaging

Sensor Resolution

640×512

Sensor Pixel Size

12μm

Sensor Frame Rate

60hz

Thermal Sensitivity

<20mk

Non-Uniformity Correction (NUC)

Manual, Automatic, Semi-Automatic

RH50R

RH50R
