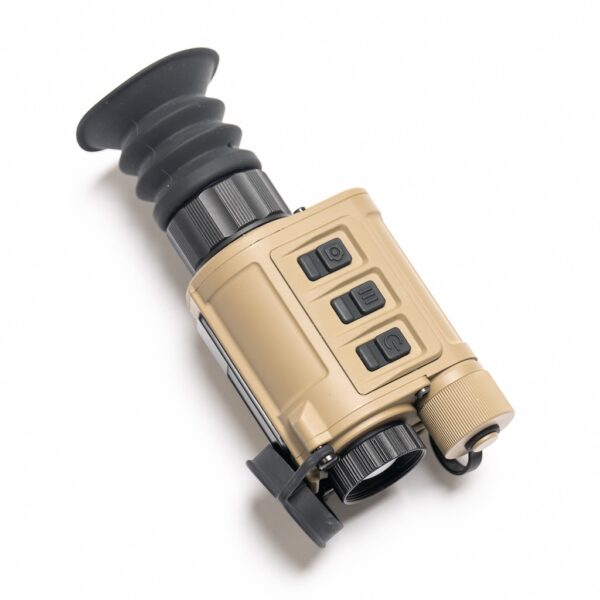

The RICO MICRO Series is an advanced electro-optic device miniaturized to deliver remarkably versatile functionality: Handheld, helmet mount, weapon mount, and clip-on. Weighing less than a pound, the MICRO will fit in the palm of your hand and can be used with standard dovetail helmet mounts or rifle-mounted as a stand-alone weapon sight. InfiRayOutdoor is blazing a new trail with features never-before-seen in a helmet-mounted thermal, such as onboard recording, onboard video play-back, and a high definition AMOLED display. The RH25 also features InfiRay’s latest high-performance 640×512, 12 μm sensor technology, MATRIX III processing, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class.
InfiRay Outdoor’s cutting edge manufacturing techniques and the highest-quality components on the market combine to produce an optic that is a step ahead of the competition in size, weight, and performance. The RICO MICRO has the features night hunters want and is more capable than optics twice the price and twice the size.
Optics
Optical Magnification
1X
Digital Magnification
4X
Objective Lens Material
Germanium
Horizontal Angular Field of View
17.5°
Vertical Angular Field of View
14°
Detection Range
1375 Yards
Objective Focal Length
25mm f/1.0
Objective Diameter
25mm
Objective F#
1.0
Focusing Mechanism
Manual Focus
Eye Relief
35mm
Display Type
AMOLED
Diopter Range
-4 – +4
Display Resolution
1024×768
Features & Performance
Reticle
7
Connector Type
“Data Cable with USB, BNC, and 7-Pin Connectors”
Color Palettes
White Hot, Black Hot, Red Hot, Color
User-Updatable Firmware
Yes
Mobile App
Yes
Storage Capacity
64gb
Connector Output
Analog
Picture-in-Picture
No
One-Shot Zero
No
Stand-by Mode
Yes
Rangefinder
No
Run Time
4 Hours
Power Source
18650 Rechargeable
Wifi
Yes
Onboard Recording
Video and Image
Image Capture
Yes
Video Output
Analog RS-170/NTSC
Startup Time
<10 Seconds, Instant from Standby
External Power Source
Yes, 7-Pin to USB 5V
Warranty
5 Years
Country of Manufacture
China
Environmental Specifications
Operating Temperature Range
-4°F to 122°F
Recoil Rating
1000 g/s² (300 Win./7mm Mag)
Ingress Protection
IP67
Physical
Mounting Interface
MUM rail/Picatinny STD-1913 rail, PICTAIL optional
Housing Material
Aluminum
Length
4.52 in
Height
2.55 in
Width
1.88 in
Weight
12.7 oz
Sensor Specifications
Device Technology
Thermal Imaging
Sensor Type
InfiRay MICRO II
Sensor Resolution
640×512
Non-Uniformity Correction (NUC)
Manual, Automatic, Semi-Automatic
Spectral Response
8-12 Microns
Sensor Frame Rate
50hz
Sensor Pixel Size
12μm
Thermal Sensitivity
<50mk
